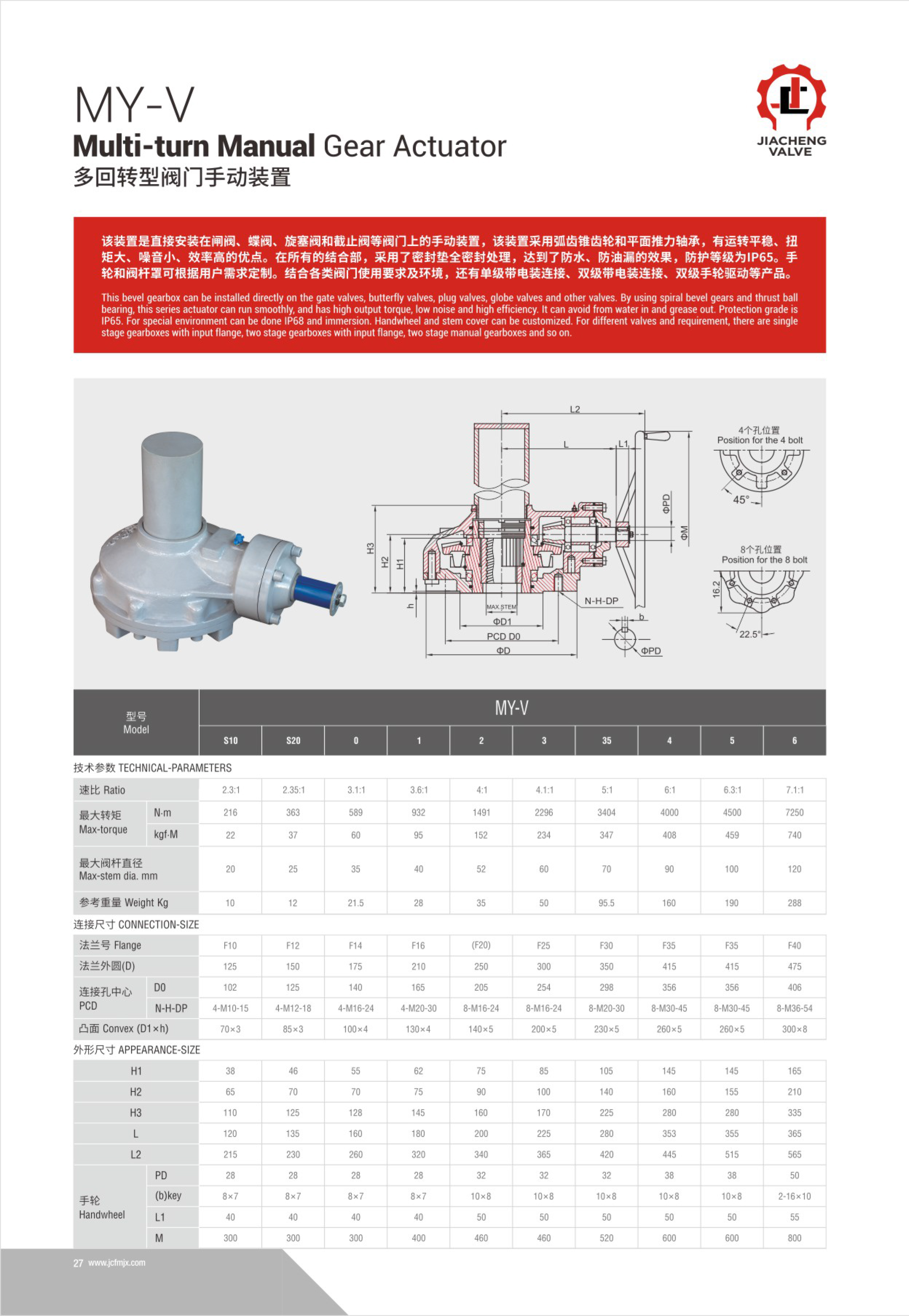

MY-V Series Mulit-Turn Manual Type Valve Bevel Gearbox For Gate Globe Valves

MY-V series multi-turn bevel gearbox suitable for gate valves, globe valves, penstock,etc. handwheel and stem cover can customized.

MY-V series bevel gearboxes series with spiral bevel gear and thrust ball bearing used is in high quality and safety. It with high transmission efficiency, superior bearing capacity, low noise, steady running etc. MY-V series is completely sealed with good waterproof performance. With removable sleeve easy to process the axis hole. MY-V series bevel gearbox consists of both manual and electric operation. The flange connecting to valve is according to ISO5211.

Product Characters:

1. Totally enclosed gear drive

2. Grease filled for longer life

3. Comprehensive gear ratios for differentapplications

4. Optional output connection

5. Manual and electric operation

6. Sealed structure, standard protection grade is IP65 (IP67, IP68 optional)
