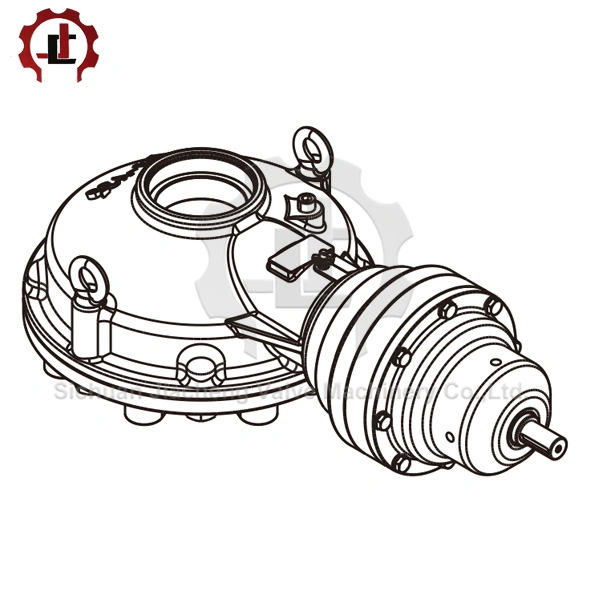

MY-SS series multi-turn bevel gearbox suitable for gate valves, globe valves, penstock,etc. handwheel and stem cover can customized.
MY-SS series bevel gearboxes series with spiral bevel gear and thrust ball bearing used is in high quality and safety. It with high transmission efficiency, superior bearing capacity, low noise, steady running etc. MY-SS series is completely sealed with good waterproof performance. With removable sleeve easy to process the axis hole. MY-SS series can switch 2 ratios at will. When opening/closing the valve, you can use a high speed ratio to output high torque to open/close the valve. When the valve pressure is relieved, you can use a small ratio to quickly run the valve. The flange connecting to valve is according to ISO5211.
Product Characters:
Totally enclosed gear drive
Grease filled for longer life
2 ratios switchable for differentapplications
Optional output connection
Manual and electric operation
Sealed structure, standard protection grade is IP65 (IP67, IP68 optional)
